Pool Robot Has Weak Suction: From Basket to Impeller

Four. That is how many stops sit between a pool robot’s intake and its impeller, and losing pull at any single one of them is enough to turn a robot that used to inhale leaves into one that just pushes them around the floor.

The good news: three of those four stops cost nothing to fix. The trick is checking them in the order the water actually travels, instead of guessing at a new pump motor first and hoping.

Walk the flow path with me, stop by stop, the way I used to walk it across a service counter with a dripping robot sitting between us.

Follow the water instead of guessing at parts

Water enters through an intake flap or grille, passes through the filter basket or filter panels, gets pulled through the impeller, and exits as the boil you see breaking the surface above the robot. Weak suction means something along that exact path is choking flow.

Test each stop in physical order, intake to exhaust, and stop the moment you find the culprit. Most robots only have one real problem at a time, so the first blockage you clear is usually the whole fix.

The costliest mistake I watched people make at the counter was ordering a new pump motor, $150 to $300 depending on the model, before ever touching the filter basket. Work the free stops first and the math almost always rewards patience over impulse.

Stop one, the intake flap and grille

Before anything else, look at the mouth of the machine. A stuck open or stuck closed intake flap, a leaf pinned across the grille, or a pebble wedged in the opening chokes flow before water ever reaches the filter.

Flex the flap by hand if your model has one; it should move freely and snap back on its own. A flap that stays half open or drags is restricting flow on every single pass, even behind a freshly rinsed filter. Some budget robots skip a separate flap and rely on the grille shape alone, so a bent or cracked grille edge does the same damage on those designs.

Location varies more than people expect. On most corded machines the flap sits right behind the front bumper where you can see it without tools; on many cordless models, an Aiper Scuba S1 included, it is recessed under a grille you have to tilt the unit to inspect properly.

Stop two, the filter basket and filter panels

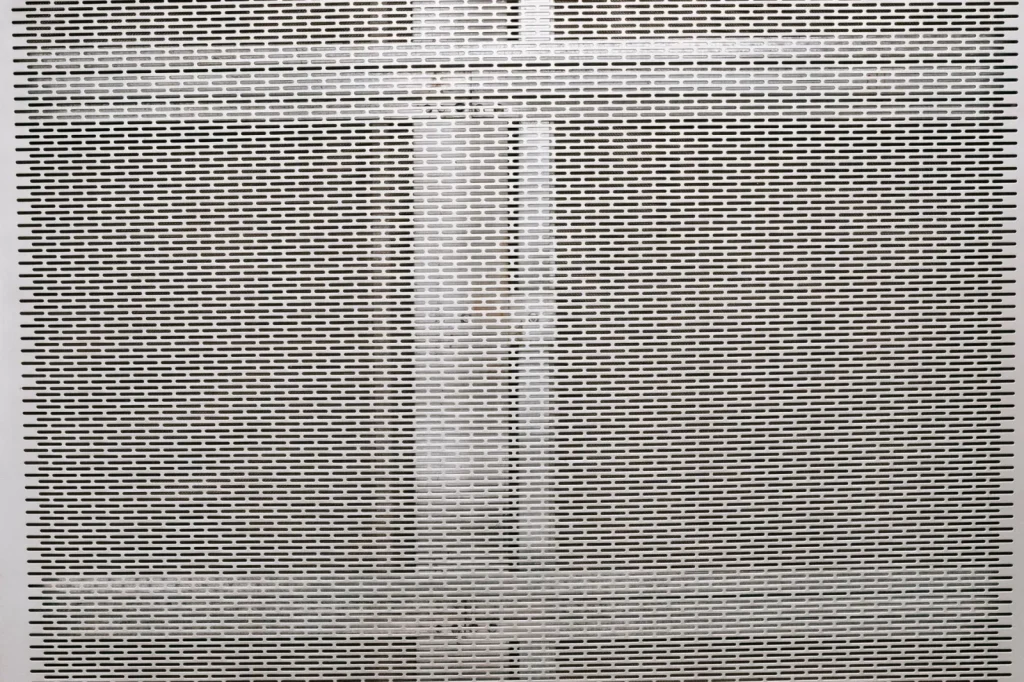

This is where most weak suction cases end, and it is the cheapest stop to check. A packed basket or a filter panel gone gray with fine debris starves everything downstream of it, no matter how strong the pump motor happens to be.

Rinse with a garden hose, never a pressure washer, and hold the media up to daylight afterward. Even panels gone gray mean the mesh is still blinded and rinsing has stopped working; that is when filter replacement beats another rinse.

Pools under oak or pine trees clog coarse baskets fast with bulk debris, while pools fighting sand or plaster dust from a gunite renovation clog fine media just as quickly from the opposite direction. Match the media to the debris you actually fight, not the one you wish you had.

Stop three, the impeller

Hair, palm fiber, and pine needles all find their way to the impeller eventually, wrapping the shaft and slowing it just enough to rob real pulling power without stopping the motor outright.

Unplug the power supply first, always. Open the impeller access, pull any wrap free with needle-nose pliers, and spin the blades with a fingertip; they should turn freely with only a light magnetic catch. A chipped blade or a scraping sound on rotation means the impeller itself is damaged, not just dirty.

A client with a gunite pool shaded by a stand of loblolly pines learned to check this bay every single week each fall. Needles are thinner than leaves and slip past grilles that would catch bigger debris, and a season’s worth of them fills an impeller bay long before the filter basket ever looks full.

Stop four, pump motor wear

Last stop, and the one where shop territory begins. A pump motor with worn bearings or aging brushes moves less water at the same current draw, and it shows up as suction that is weak everywhere, on every mode, with clean media and a clear impeller.

Listen as much as you look. A pump that whines or rattles under load, on top of weak flow, is telling you the same story as the numbers: this is wear, not a clog. A pump that runs quiet but still underperforms after the first three stops are clean is the rarer version of the same wear, and it is the one case on this page where guessing costs nothing extra, since everything ahead of it was already free to check.

This is also where age and the repair or replace math enter the conversation. A pump job on a robot already past its fifth season competes directly with the price of a new budget unit carrying a fresh warranty.

The before and after test that proves the fix

Numbers beat impressions here. Before touching anything, drop a small handful of leaves in front of the running robot and time how long it takes to clear them, or simply watch the boil of water breaking the surface above the outlet.

After each stop you service, repeat the exact same test. A weak boil that turns confident after a filter rinse tells you stop two was the answer; no change at all after all four stops points firmly at the pump.

A boil that improves but never fully recovers after one fix usually means two stops are contributing at once, most often a half clogged filter riding along with a partially wrapped impeller. Finish the full checklist even after the first fix helps, rather than stopping at the first small win.

I ran this test on my own Beatbot AquaSense 2 during a slow August. Eleven seconds to clear a handful of oak leaves back in July, nineteen seconds by August with nothing else changed. One filter rinse brought it back to twelve. That five minute test is more honest than any amount of staring at the basket and guessing.

The flow path at a glance

Read it top to bottom in the order the water travels, and the free checks nearly always win before the expensive ones ever get a turn.

The four-stop checklist

• Flex test the intake flap or grille
• Rinse filter media until it drains fast, check color in daylight
• Unplug, clear impeller wrap, spin blades by hand
• Watch the surface boil before and after each fix
• Log the leaf test time so you are comparing numbers, not memory

Where to go from here

Weak suction almost always lives in the first two stops, basket and impeller, and both are free five minute jobs. Work the path in order, test after each stop, and stop the moment the boil comes back strong.

A robot with restored suction pulls its own weight again within one cycle, and the leaf test you just ran becomes the fastest way to catch the next slow fade before it turns into a full afternoon of guessing.

Frequently asked questions

Can the wrong filter micron rating cause weak suction on its own?

Yes, and it is one of the most overlooked causes. Ultra-fine media rated around 3 to 20 microns catches dust and pollen beautifully but clogs within a single cycle on a leafy pool, choking flow just like a packed basket would. If suction dropped right after switching to a finer filter, the media choice is the first suspect, not the pump.

Does water temperature affect how strong a robot's suction feels?

Slightly, but it rarely explains a real drop. Cold water thickens grease in the pump bearings a little and can make flow feel marginally weaker in early spring. A robot that loses most of its pull regardless of temperature is dealing with a blockage or wear, not the water itself, so do not let a cool pool talk you out of checking the filter.

Is it normal for suction to feel weaker right after topping off the pool?

Briefly, yes. A freshly topped off pool can carry extra air bubbles into the intake for the first few minutes, which reads as weak or sputtering suction that clears on its own. If weak pull continues well past the first ten minutes of a cycle, treat it as a real flow problem and start at the filter basket.

Does a full skimmer basket on the pool itself affect the robot's suction?

No, they are separate systems. The pool's skimmer feeds the pump and filter system, while a robotic cleaner filters independently through its own basket or panels. A packed skimmer basket can affect water clarity and circulation, but it will not choke the robot's own intake. Check the robot's own filter media first regardless of what the skimmer looks like.

Is weak suction ever covered under warranty?

Sometimes. A worn pump motor or a manufacturing defect in the impeller assembly typically falls under a standard 1 to 3 year warranty. Suction lost to a packed filter, a wrapped impeller from hair or debris, or the wrong filter media is considered normal maintenance and is not covered. Clear the free causes first so you know which category you are actually dealing with.
